i cleaned up the jaw . also the way to print it .
the problem i had was the inner slot for the speaker;
tent to brake easly . so i print it upwarts . this ,
way you have a clean print for the slot speaker .
i finally figured out why the mouth didn close very good .
sometimes the solution is right under your nose .
so the mouth stay open about 10 a 15 MM
i try to cut out a piece from the jaw hings but that ,
didn work cause the jaw got pullet backwarts ,
means the jaw comes under the upper mouth .
next what i did as you can see allreddy in the picture
is lower the swivel hole that makes the jaw comes higher . easy fix
does anyone like me hate's to glue the nut in the skull to keep them in place ?
i changed that . now you can slide the M3 nut in place and no glue is needed .:p

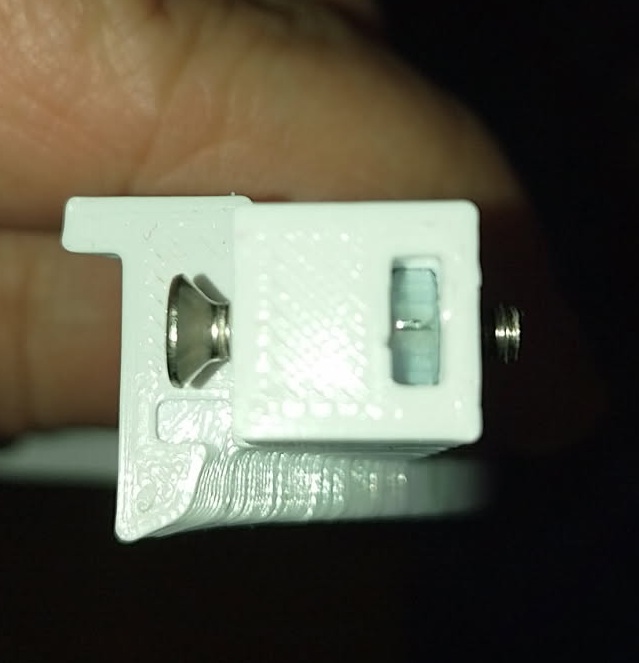

picture nut in place . im testing all skull parts , when reddy i posted it here .
i saw this techniek on the pib robot .
hi

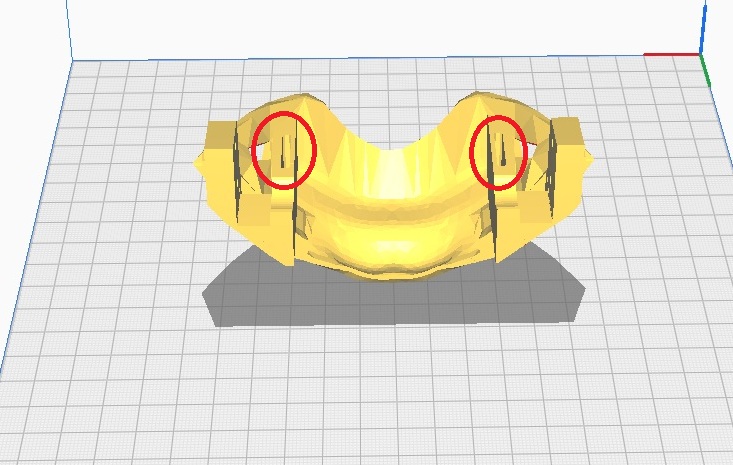

i cleaned up the jaw . also the way to print it . the problem i had was the inner slot for the speaker; tent to brake easly . so i print it upwarts . this , way you have a clean print for the slot speaker .
jawmod.stl
hello roboteers
i finally figured out why the mouth didn close very good . sometimes the solution is right under your nose .
so the mouth stay open about 10 a 15 MM i try to cut out a piece from the jaw hings but that , didn work cause the jaw got pullet backwarts , means the jaw comes under the upper mouth .
next what i did as you can see allreddy in the picture is lower the swivel hole that makes the jaw comes higher . easy fix
a short video .
https://www.youtube.com/shorts/nHmVRk_vXjY
and offcourse the new hings .
jawhingsmod-2.stl
hello inmoov roboteers

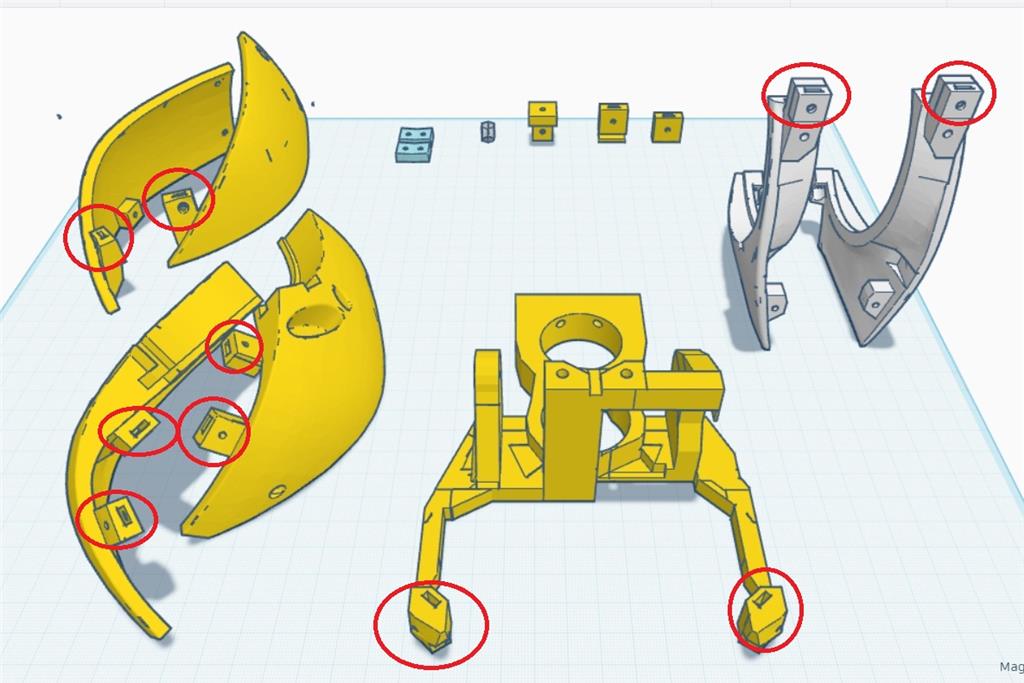

does anyone like me hate's to glue the nut in the skull to keep them in place ? i changed that . now you can slide the M3 nut in place and no glue is needed .:p
picture nut in place . im testing all skull parts , when reddy i posted it here . i saw this techniek on the pib robot .
all ideas are welcome .hello roboteers
some new idea . inmoov head with teeth ...:p i also corrected the left&right side jaw . i wil tested later .
Teeth! Haha! I love it! Can't wait to see how this looks. After you get this installed you can start feeding him megabits! LOL
hi dave
he will need a stumik too then . hahaha or upper teeth lol
haha, I like the teeth idea
I see a Terminator Inmoov idea coming about.
hi robohappy
yes it looks good ,more naturly .

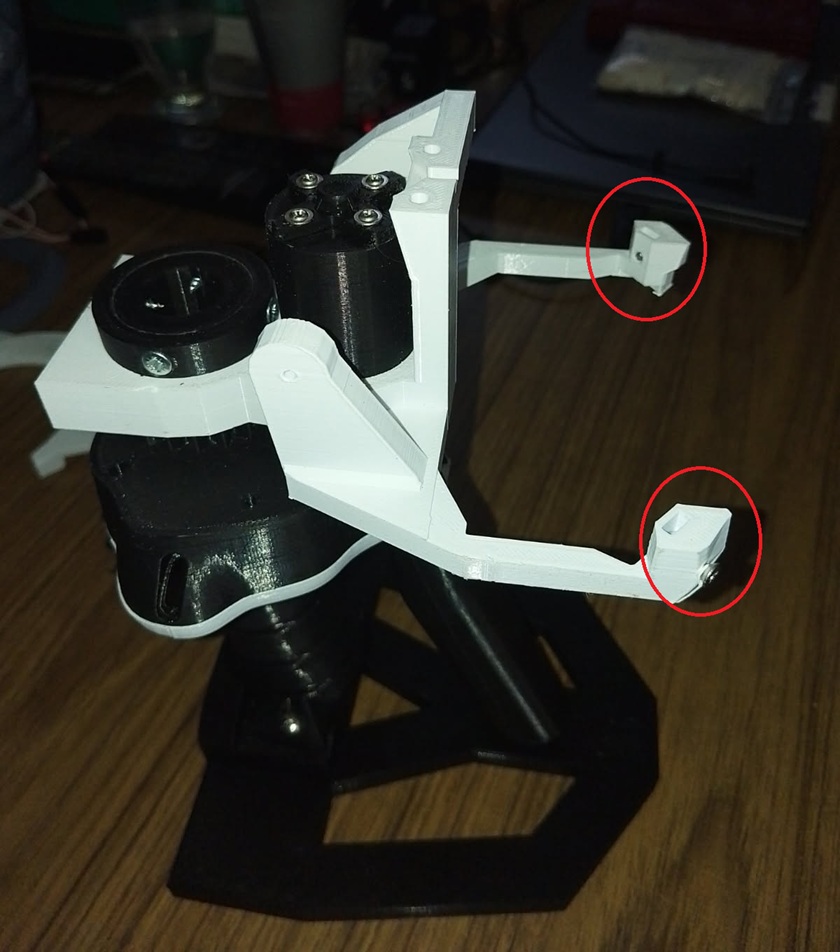

here's a picture of the frame with the nut in place . works great .
