hint

more ideas . looks like there fits a lever servo in ...:)

the two brothers

blue eyes

some mods  the inner screw is little tricky to get in . a little cut out .

jawmod.stl

new pair jaw hings , more free space between hings and eye socket . new file .

jawhingslot.stl

any ideas always welcome .

Hey Nomad. Those are looking good. But wondering, have you been having any issues with the jaw moving up/down when speaking? I have noticed two things with my robots head. One, that the left side of its mouth seems lower than the right, which led to find that the parts that connect to the jaw servo does not move smoothly up and down the spiral shaft, and that the piece is not perfectly straight.  I've seen video of your bots mouth movement, makes me wonder whats different with mine.

hi robohappy

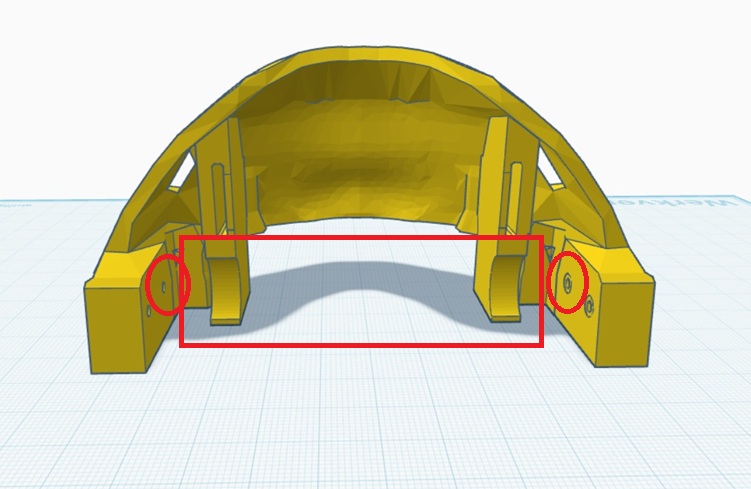

it all starts with the frame were all part wil be mounted . i notest the lower micro servo mount is touching the back , of the frame . also the nut m3 holes didn were correct ; also fixed that . do a test with open skull and see , what moves or touch .

i made a cut out. Also the jaw hings touching the eye sockets . see new stl downloads .

robohappy

also the lowe hings eye socket seems to touch the jawhings when turn the eyes . also a fix for that . see download stl , i removed that lower hings connection . you can print these complete , no need for screws .

hi

new frame .the right side more room to open jaw .

NEW final STL 26-10-2025 framemod.stl

hi all

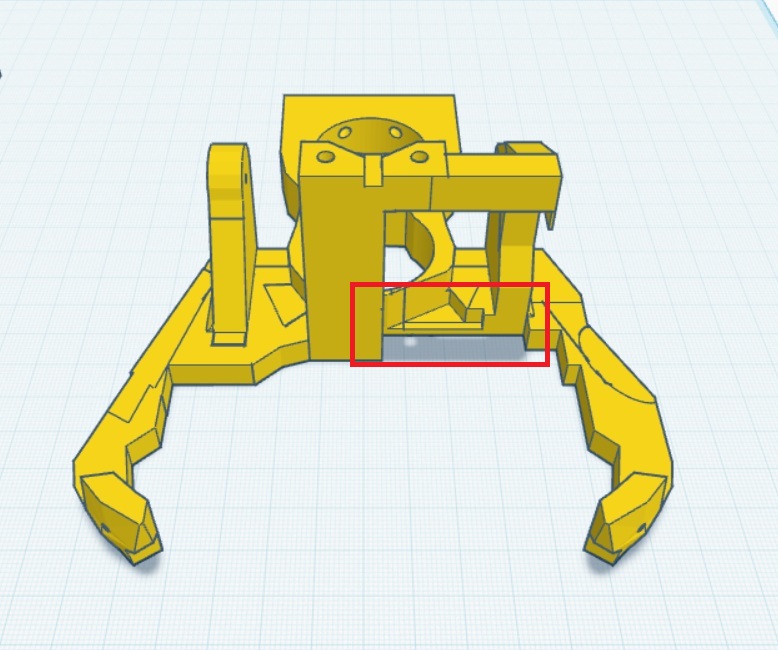

testing some more , then i saw this ? side part touch the frame . so some cut away .

final frame mod framemod.stl

hi all

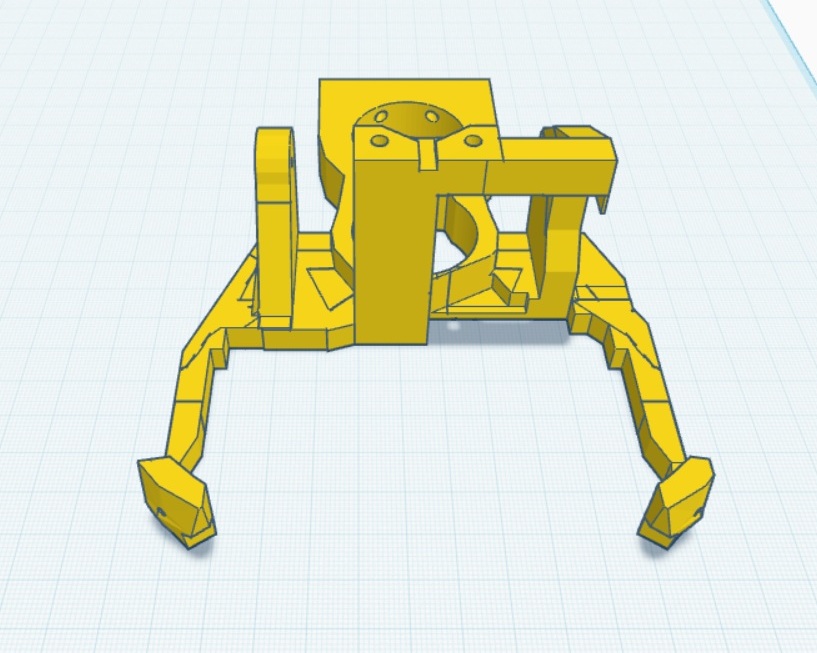

the final stl for the frame .

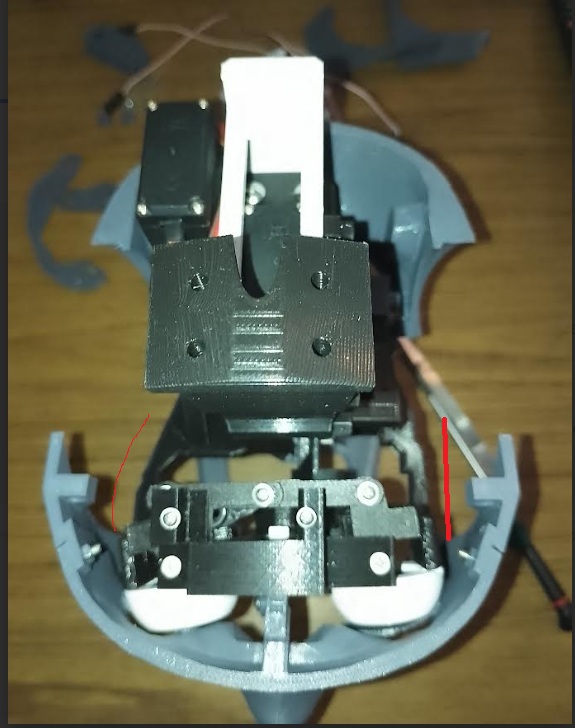

the problem the legs of the frame make a bend.

i made them straight

framemod.stl
