New Friend For Jd, Lita My Humanoid Robot Made From Water Pipe Pvc And Scraps

EricEZ

Indonesia
robot video thumbnail
robot video thumbnail
robot video thumbnail
robot video thumbnail
robot video thumbnail
robot video thumbnail
robot video thumbnail
robot video thumbnail

image gallery

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

User-inserted image

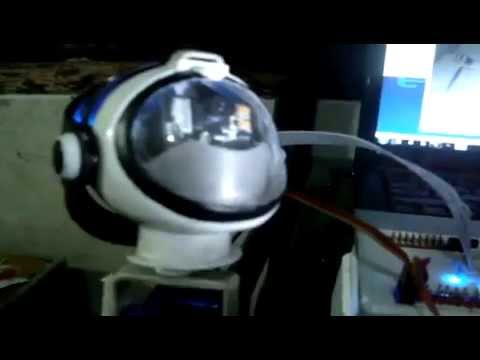

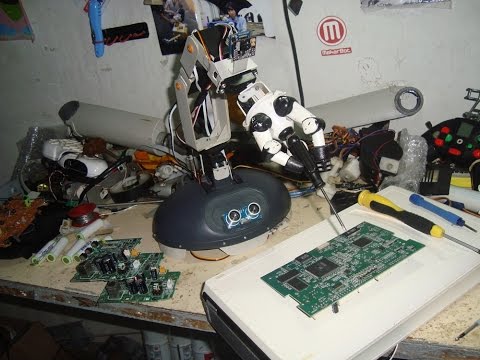

Hello All, I am getting ez develover time ago. in fact it will I use for real size wall e. I. but it seems I have to wait for the second gearbox on the wheel is broken and need to be replaced but the larger cost, while I was waiting, i have a idea to creating my own JD with Ez developer, but I dont have 3d printer so I made from pvc water pipes and scraps. the idea was developed so as to produce a humanoid robot JD system mechanism but in different look like (the new design humanoid robot). :)
