Finally got my EZB in the mail. Put together a quick video to show off the functionality of my project. Keep in mind this is the very very beginning. I will soon be adding a video camera to enable motion/facial tracking. I will keep updating as I make progress. This is the first "robot" I've ever built. The EZB and the ARC software really made this simple.


By — Last update

Other robots from Synthiam community

Sulla's R2d2 Bb-8 Mashup Robot Project

Sulla's R2d2 Bb-8 Mashup Robot Project

Thought you guys might find the project I am working on interesting. Its an R2D2 BB-8 mashup robot. So far coming along...
Jstarne1's Security Cam Robot, This Droid Is Watching For You. Jazzy Power Chair Frame

Jstarne1's Security Cam Robot, This Droid Is Watching For...

Here is the current look of this project, Super cool update, magpi magazine wants to feature this build with steps how...
Hazardbt's Zombie Telemetry Suit

Hazardbt's Zombie Telemetry Suit

I have a telemetry suit-controlled Cyborg Zombie. Functions as a mobile, real-time robot surrogate through which I can...

ARC Pro

Upgrade to ARC Pro

Your robot can be more than a simple automated machine with the power of ARC Pro!

Load More ...
#7
It came out pretty good. The body was $1 from one of those "everything's a dollar" stores. The LEDs are practically nothing and the micro servo was $3. So a suprisingly cheap project.

It'll compliment the animated skeleton nicely. The random movements and random sleep times really give it a more realistic feel.

I'm thinking about a doing a rat with the same effects. I have plenty of ports left on my EZB, might as well use them up!

The skull is down currently because I burnt out the jaw servo, so I'm awaiting a replacement. Once it's running again, I'll post another video.
Australia
#8
Brilliant job. As a suggestion you could add a motion tracking camera to one eye of the skull and a red LED to the other. And perhaps you could add a mp3 trigger for the crow.
#9
Those are great ideas. These are part of a larger animated scene. I trigger an mp3 and the skull moves and talks and the crows eyes flicker. I also have an antique radio whose dial will move and light up. I will post a video shortly.

Thanks for the suggestions though!
#10

User-inserted image

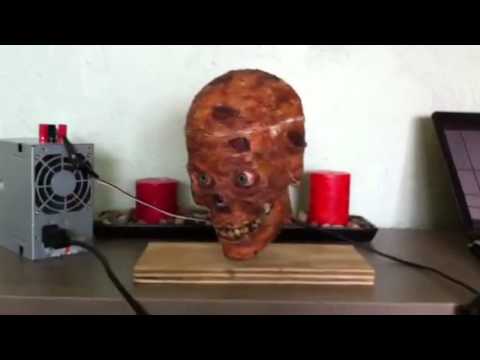

Here is the decorated skull.

Here is a video. Unfortunately, its being driven by a Polulu maestro servo controller and VSA's demo software for now. I didn't want to risk burning out any more servo's. Once the automation abilities are within ARC (no hurry! :P ) I will use the EZB.

You'll notice it has no tilt capabilities, since I moved that servo to the jaw for the time being, while I await replacements.

Netherlands
#11
No way dude, creepy as hell *eek*
#12
Click To Watch Video


Here is an antique radio I found. Although you can't see it, the dial is illuminated by LED's. The dial is driven by a micro servo. This one is controlled by the EZB and ARC!

In the scene, the radio will have a speaker in it that warns viewers of an escaped patient from the local lunatic asylum.
#13


Not sure why the first video didn't work.
Canada
#14
Cjmekeel, I was reading along then I saw this half rotten skull with eyes and literately said "Holy $#*%!!"

Very scary...I just know on haloween some of the kids who come to your house will leaved scared. :D Very nice job!
#15
This is good stuff, cjmekeel - keep the updates coming!
PRO
Synthiam
#16
Haha man please give me your address so I can come tricker treating at your house!
Australia
#17
The complete set-up will amazing. I can't wait to see the finished product.
#18
Working on "corpsing" the body for the skull this week. Hopefully will have that done within a week and I will post some pictures of the entire set up. I made some LED pen lights to add some color and mood to the scene too.
#19
CJ were you able to use VSA with EZB ? If so how?

Thanks
#20
No, unfortunately the EZB is not compatible with VSA. You may be able to write an interface using VSA's console (I think that's what they call it) but I haven't tried. DJ Sures is working on some animation menus for ARC that may have functionality similar to VSA's.

I used VSA with a pololu maestro servo controller. it's a great program but expensive. ARC is free so I can spend my money on more props!
#21


Here is my full body test. The prop is 90% done. Looking good so far. Still need the automation part of ARC so I can finish the routine. (hint hint)
PRO
Synthiam
#22
Okay okay!! I was working on it last week. The control is difficult but I have an idea.

For the short time, how about I build something simple specifically for you.
#25
wow congrats dude.
where did you get that skeleton?
#26
Here are a few links of what I have done with my 3 axis skulls.















There are lots more videos on YouTube if you are interested. Just search for "Sindy Skinless"


Thanks!
