Blockly Loop Execution Issue

Skip to comments Jump to end

Hello! I'm trying to create a loop in the Blockly programming environment, but it only executes the first statement and doesn't continue with the rest.

Could someone please help me figure out why the loop is not working as expected? Thank you!

Jump to end

Upgrade to ARC Pro

ARC Pro is more than a tool; it's a creative playground for robot enthusiasts, where you can turn your wildest ideas into reality.

Compare Pro Features View Subscription Plans

Synthiam Support

Canada

#1 Jan 28 — Edited Jan 28

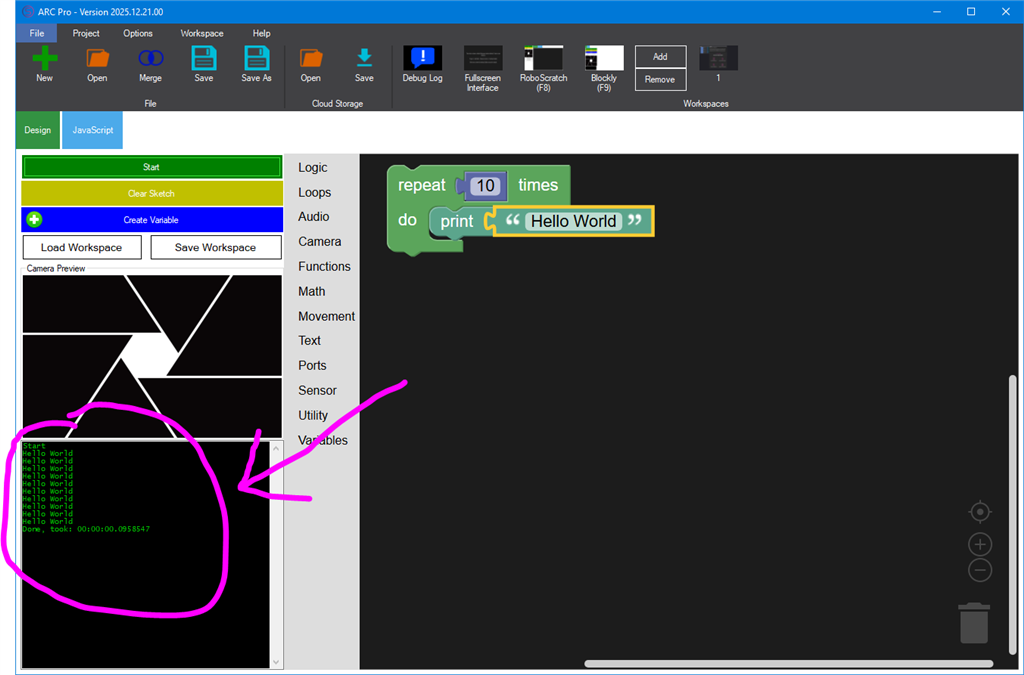

Look in the debug window, and you will find messages. If there is an error, it will be displayed there.

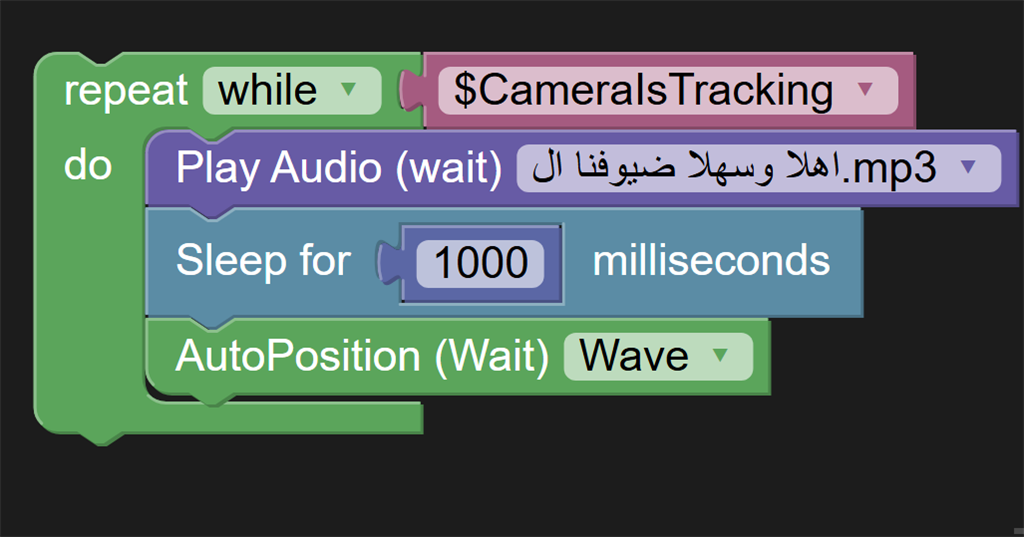

Also, don't forget that you are using the WAIT commands, which means they must complete before moving to the next command. The word WAIT means wait for something to complete until instructed to continue. So in your code, you audio soundboard would WAIT until it has completely finished before moving to the next command.

If you do not want that, do not use the WAIT commands.
