script for the radar and ezbv4 sound

Nomad 6R

Belgium

Asked Jul 2023

i wrote a script for using the radar ( ping sensor ) . my problem is i think i need a loop , in the script but then its keeps saying over and over desame words .

controlCommand("Ultrasonic Radar Scan", "PauseOff") sleep(400) ping_Wait(d5,d5,higher,50) sleep(400) sayezb(" intruder detected ") sleep(300) controlCommand("Auto Position", "AutoPositionAction", "Wah")

my second queqtion is .

will it be possible in the future to change the start up shime from the ezbv4? incase i asked this question before . my appolegies .

Upgrade to ARC Pro

Stay at the forefront of robot programming innovation with ARC Pro, ensuring your robot is always equipped with the latest advancements.

Compare Pro Features View Subscription Plans

Dave Schulpius

PRO

USA

#1 Jul 2023 — Edited Jul 2023

I've never used the Ping command but I think you need to have two different ports listed in it. In your example you have the same port, d5, listed twice.

ping_Wait(d5,d5,higher,50)

Quote:
Trigger and Echo are Digital Ports

Other then that, when you are looping the script are you moving the object out of the range you state once it's detected? If not that could cause the script to say the same phrase you want it to when the object is still in range.

Also once the object is detected within range you should probably have the script wait until the object is out of range again.

Again, I've never played with ping sensors and their scripts so these are just guesses.

DJ Sures

PRO

Synthiam

#2 Jul 2023

Some ping sensors use a single wire and therefore use the same port. So that’s fine

i think you’re using the wrong ping wait command. You’re waiting until the value is higher than 50. That means when no one is there it continues.

I think you want ping wait lower

Nomad 6R

PRO

Belgium

#3 Jul 2023

hi dj

ah i have a try . am using the orginal from ez robot with 3 wire .

hi dave

the 3 wire ultra sonic uses same ports

thank you bolt .

JustinRatliff

PRO

USA

#4 Jul 2023 — Edited Jul 2023

I think the issue is what DJ said, with the value set to higher than 50 as it is scripted if would take action if the distance was further away or nothing detected. The lower the value, the closer the object is with PING sensors, right?

And if you wanted everything to constantly run in the script without end you would want to use a loop. Otherwise, it would run once.

Nomad 6R

PRO

Belgium

#5 Jul 2023

hi justin

that is correct . i wanna the robot to react when the ping detects something.

thanks

JustinRatliff

PRO

USA

#6 Jul 2023

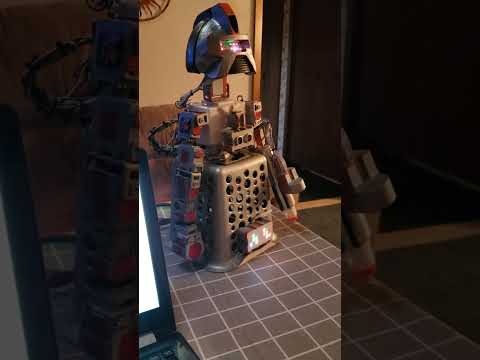

Can you hear my Boxer dog snoring in the background, LOL

This might help:

controlCommand("Ultrasonic Radar Scan", "PauseOff")
Goto(IntruderDetected)

:IntruderDetected
sleep(400)
ping_Wait(d11,d11,lower,50)
sleep(400)
sayezb(" intruder detected ")
sleep(300)
#controlCommand("Auto Position", "AutoPositionAction", "Wah")
ControlCommand("Auto Position", AutoPositionAction, "Gunready")
ControlCommand("RGB Animator", AutoPositionAction, "Scanner")
ControlCommand("RGB Animator2", AutoPositionAction, "Police2")
sleep(8000)
Goto(AllClear)
Return()

:AllClear
ping_Wait(d11,d11,higher,50)
sleep(400)
ControlCommand("Auto Position", AutoPositionAction, "Stand")
ControlCommand("RGB Animator", AutoPositionAction, "RedEyes2")
ControlCommand("RGB Animator2", AutoPositionAction, "B9ChestLights")
sleep(400)
Goto(IntruderDetected)
Return()
