Lost In Space B9 Robot Arm Rail Upgrade! Hall Effect Sensor Limit Switches

Skip to comments   Jump To End

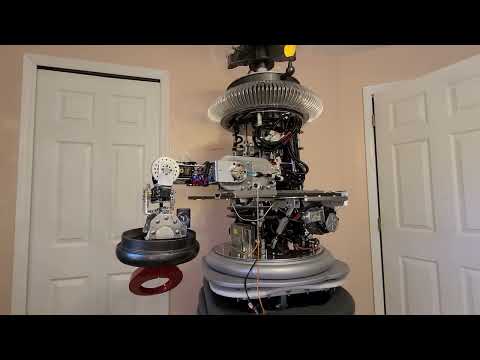

I'm upgrading the arms in my Lost In Space B9 Robot. One thing I need to improve is get better feedback to the Sabertooth Motor Controller that controls the motor that sends the arm in and out of the torso on a carriage. I've decided to add Hall effect limit switches at one end of travel due to space limitations. In this video I show how these are going to work.  I hope you enjoy!
