Home Depot R2D2 To A Real R2D2 Robot

David mcsdaver

USA
Skip to comments   Jump to end
robot image
robot image

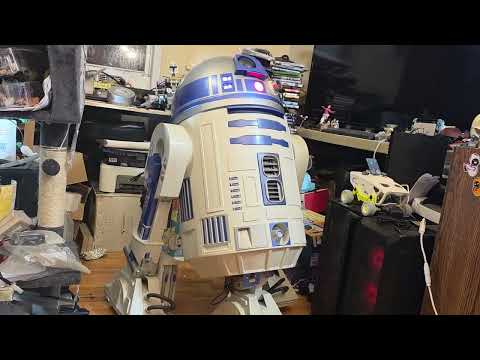

video

User-inserted image

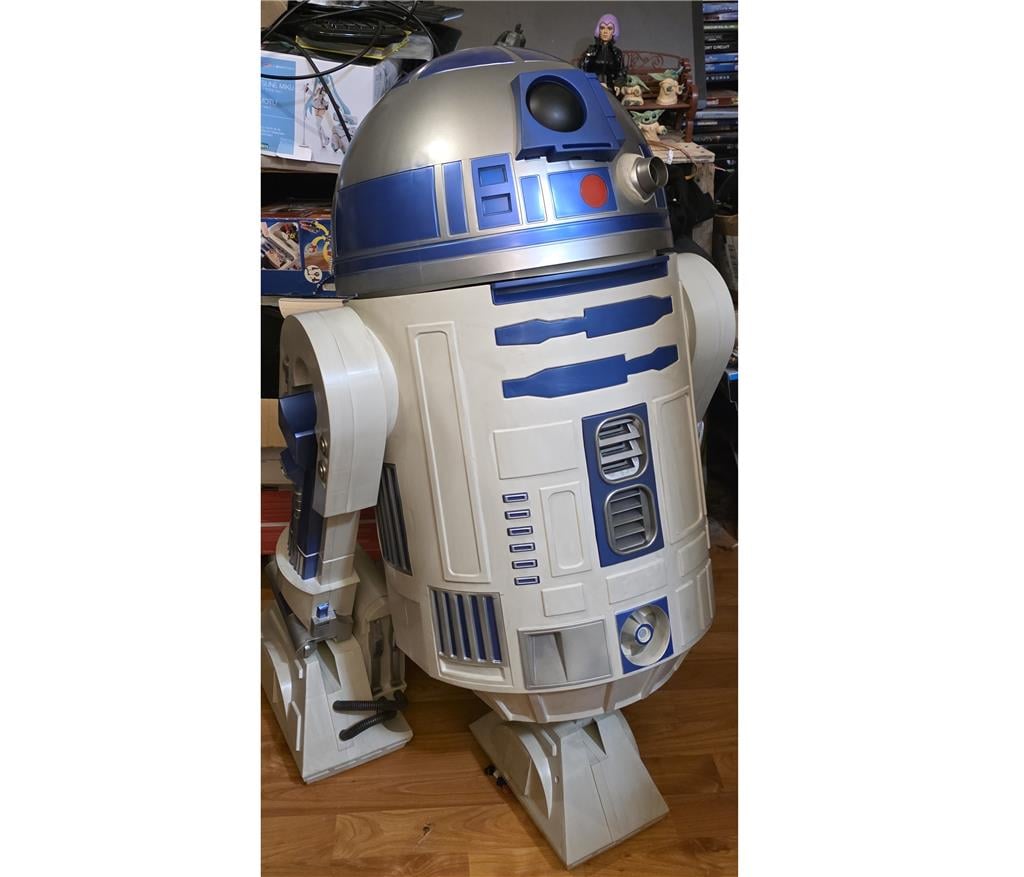

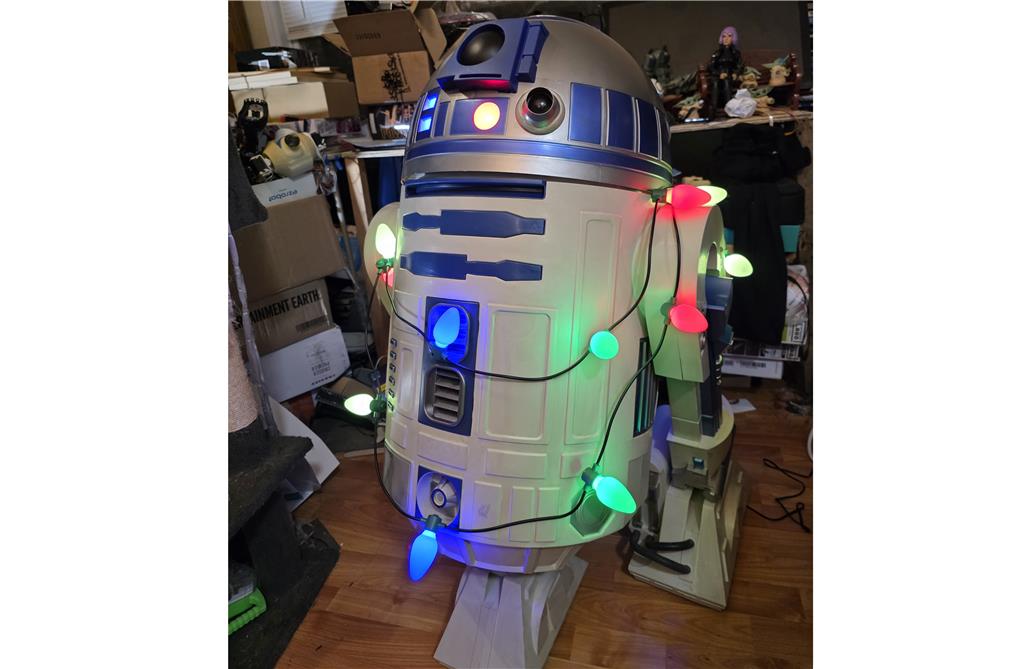

I am starting with an animated R2D2 from Home Depot, he uses a large base that can move him left, right and a little bit forward and back. Because I want a real working robot I removed the base and bttery powered the dome rotation, lights and sounds. These are activated by a AR sensor. I took him apart and added bumper car motors to his rear feet and a swivel wheel to his third foot. Right now he drives using RC and two ESCs, one for each motor.

User-inserted image


Programming

R2D2 will be able to track faces, colors, drive around and use AI all with EZ Robot and the best programming I can do. This is just the start.

Parts & Materials

Tools

  • Dremmel
  • Drill
  • Step drill bit
  • Large Razor knife
  • Allen wrench

Parts

  • EZ Robot board
  • Home Depot R2D2
  • Roll of wire
  • MP3 Player

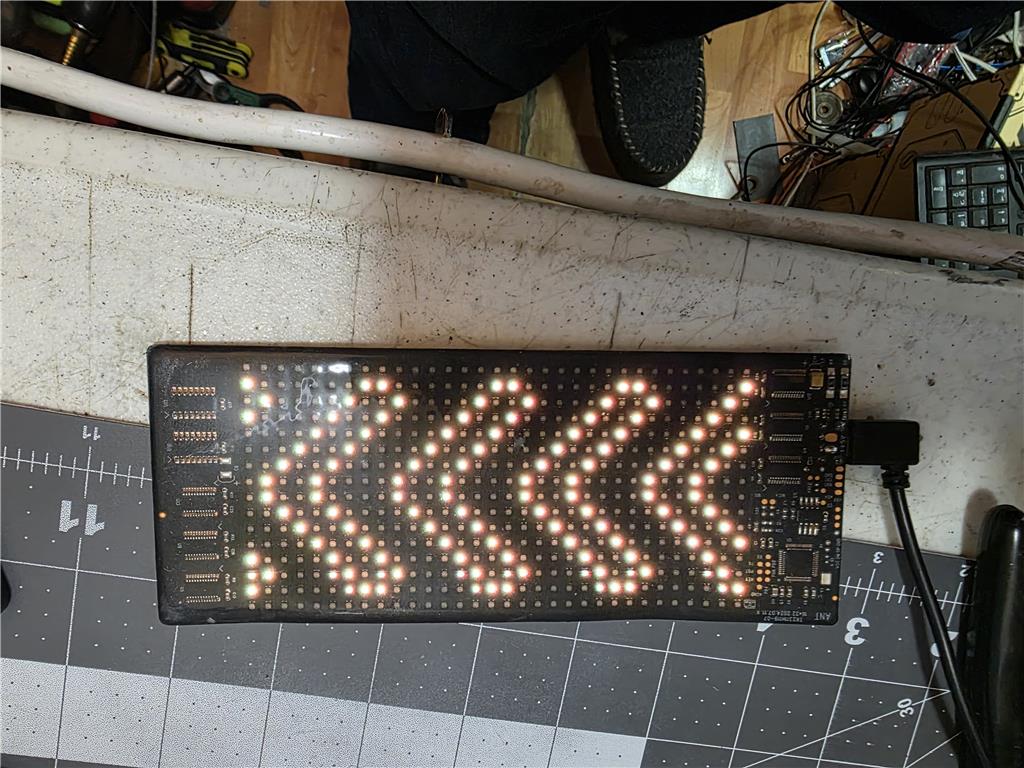

  • Arduino Nano with 2 small video screens
  • 10 channel RC Transmitter and Reciever
By — Last update
Jump to end

Other robots from Synthiam community

Ezang's I Am A. B. - J D's Bigger Brother

Ezang's I Am A. B. - J D's Bigger Brother

Taller humanoid with longer legs and arms, added head servo and rearranged RGB lights for increased movement and...
Oakmot's Chloe Project

Oakmot's Chloe Project

Home mannequin robot using EZ-B servos, camera face-tracking and Synthiam ARC control with DC power, arm plans, and...
Rgordon's Project Magnus On Hold

Rgordon's Project Magnus On Hold

T.E.C.H. humanoid with EZ Board brain, two-wheel tank drive, scooter chain drive, camera-ready head, voice control,...

ARC Pro

Upgrade to ARC Pro

Your robot can be more than a simple automated machine with the power of ARC Pro!

Author Avatar
#2

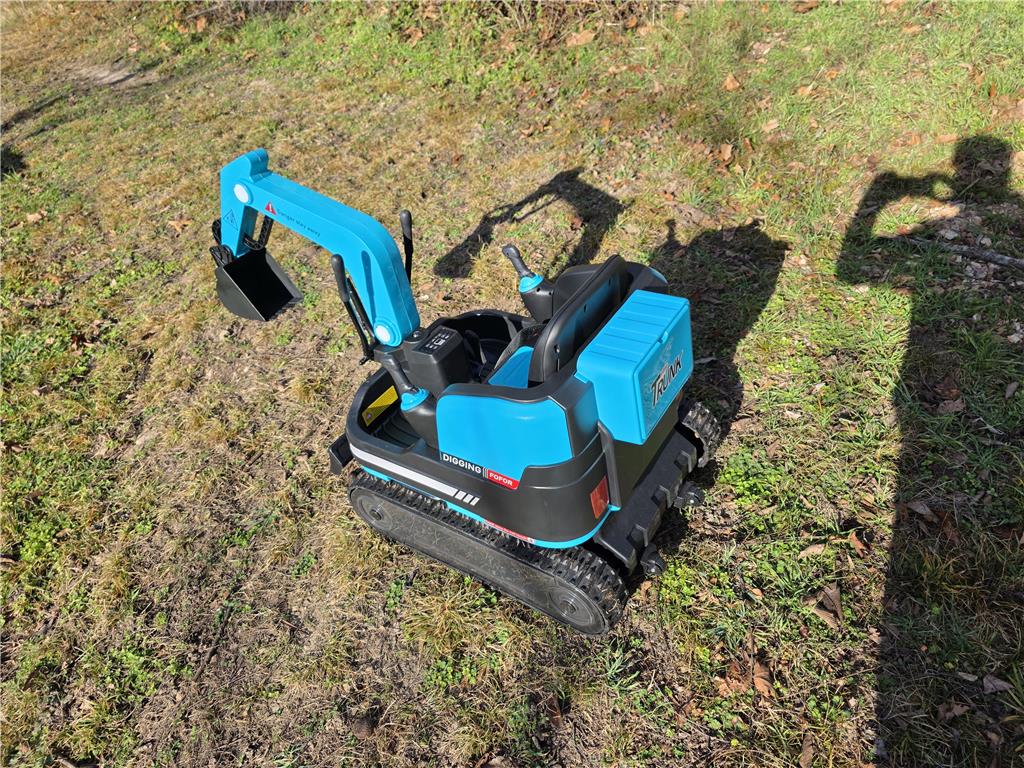

I am also building R2 a friend. This can drive with me on it.
